Types of Penetration Testing: Methods, Approaches & How to Choose

Reviewed by:

Victoria Shutenko

Security Engineer & Pentester at TechMagic. AWS Community Builder. AWS UG Leader. Certified eWPTX, eCPPT, eMAPT, CCSP-AWS, CAP, and C-AI/MLPen

Each type produces a different picture of the same product. A test that starts from the public internet with no prior knowledge shows what an outsider can reach in a week, while a review with full source-code access surfaces security flaws an outsider would never find. More than one type exists so you can match a test to the risk you actually carry.

Choosing well means weighing what each type finds against what it misses, and your compliance deadline usually narrows the field first. TechMagic holds CREST accreditation for penetration testing, and everything below comes from the tests our experienced penetration testers run for clients. Ready to plan a test, with or without a defined scope? Our penetration testing services page is where to go next.

What Are the Types of Penetration Testing?

Penetration testing types are classified by what the pen tester knows, where the tester starts, how the engagement is structured, and what is under test. Here is the map this page follows:

Testing approach

How much internal knowledge the tester receives. Black box, gray box, and white box.

Method

Where the tester operates from and what they simulate. External, internal, and social engineering.

Engagement style

How the work is structured and scored. A traditional scoped test, a red team assessment, or a physical test.

Target area

Which layer of the product is under test. Web application, mobile, API, cloud, network, and more.

Formal types of penetration testing methodologies, such as PTES, OWASP, and NIST SP 800-115, give security professionals a repeatable process underneath all of this.

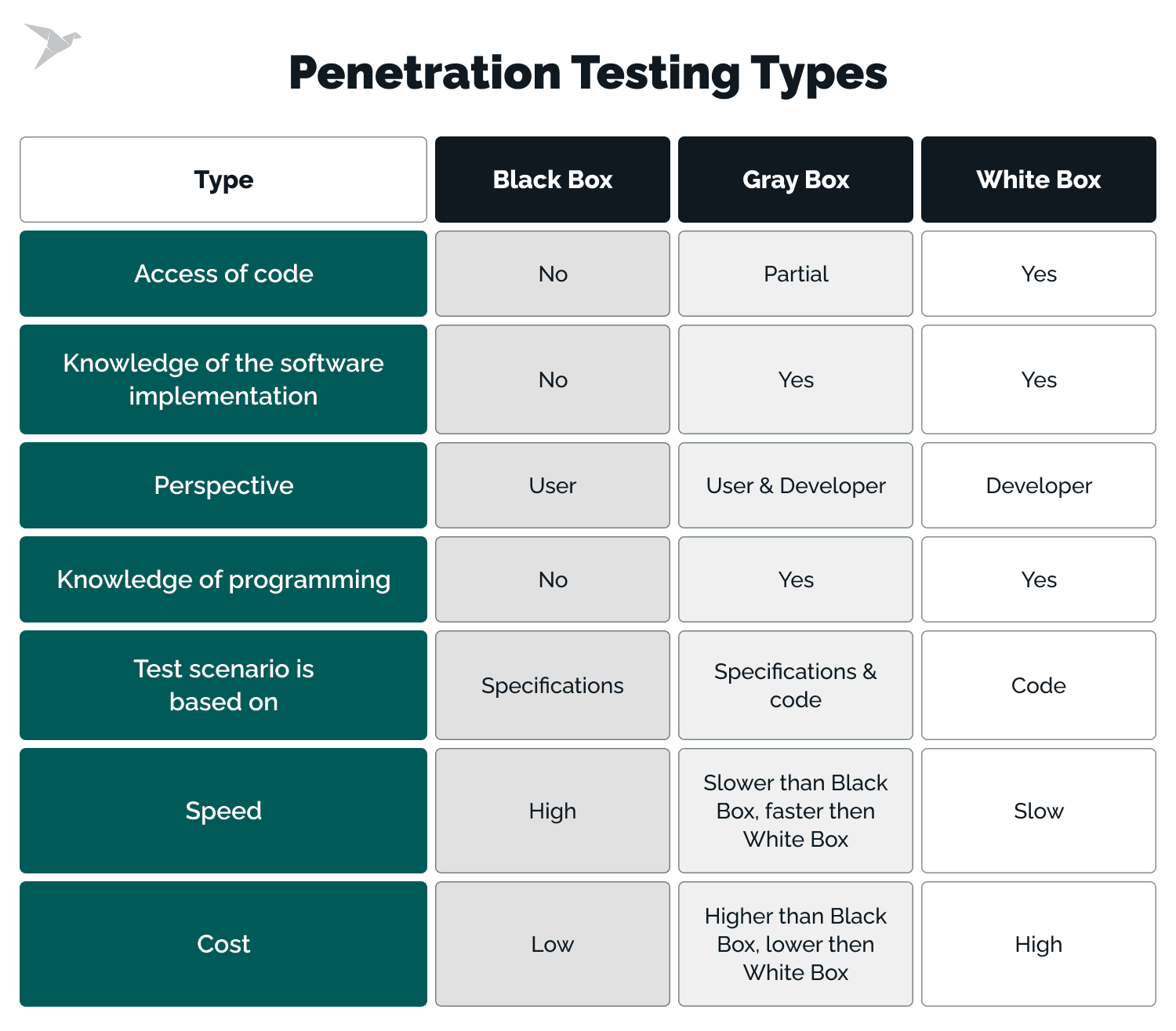

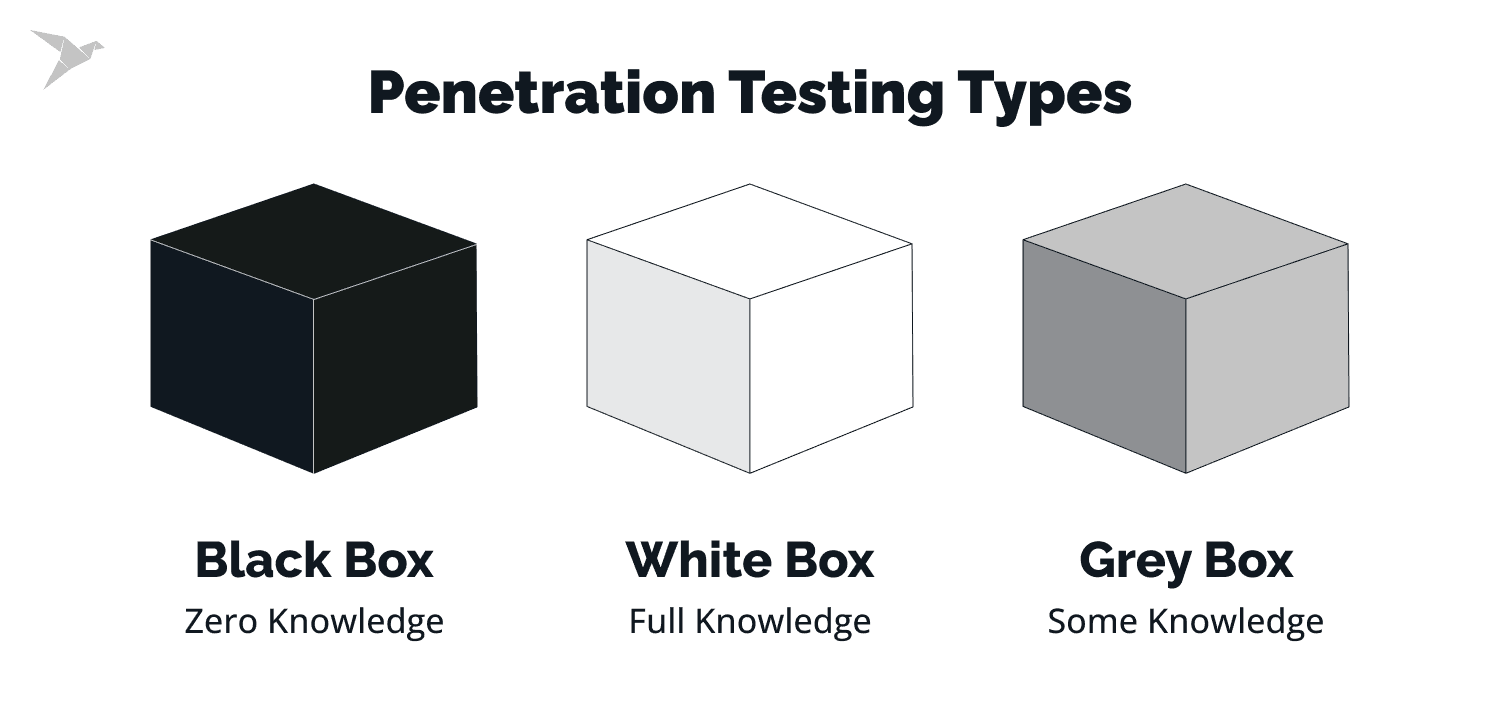

Black box testing

Black box testing gives the penetration tester nothing beyond what any outsider could find: DNS records, exposed services, and leaked credentials. They map what is reachable and try to gain access. It is the most faithful picture of your most exposed vulnerabilities.

Suitable for: a first external test, to see your exposure as an attacker does.

Knowledge: none

Effort:lowest

Blind spot: internal flaws

Gray box testing

Gray box penetration testing gives the tester partial knowledge: test credentials, architecture diagrams, and API documentation. Those inputs skip discovery and put the budget into exploitation. Most engagements use it, because it finds the real security weaknesses: broken object-level authorization and privilege escalation.

Suitable for: a multi-role product, where one user could reach another's data.

Knowledge:partial

Effort:moderate

Blind spot: code defects

White box testing

White box penetration testing gives the tester everything: admin rights, server configuration, operating systems, and source code. The tester can identify weaknesses by tracing a vulnerable input from the frontend to the query that executes it, down code paths a black box test misses.

Suitable for: a major release, a rewritten authentication layer, or a code-level audit.

Knowledge:full

Effort: highest

Blind spot:realism

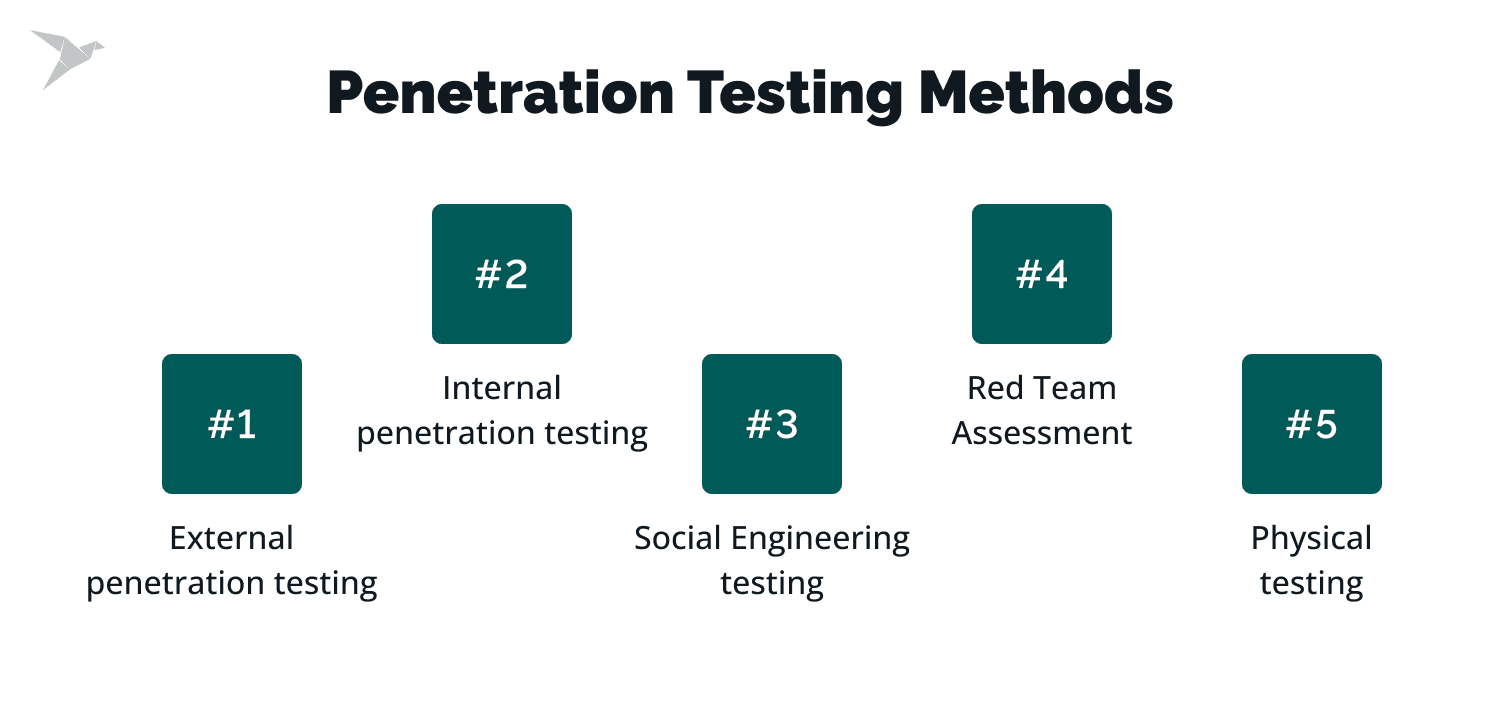

Penetration Testing Methods

The types of penetration testing methods below describe where the tester stands when work starts. Most programs begin externally, then add internal and social engineering penetration testing coverage.

Penetration Testing Types by Engagement Style

Engagement style describes how the work is structured, scoped, and scored. Two engagements can share an approach, a method, and the same penetration techniques, and still be different projects, with scope and cost climbing down the list.

Traditional (scoped) penetration test

A standard penetration test covers an agreed target within a fixed window, usually one to three weeks. Your team knows it is running, and the deliverable is a report with severity-rated findings and a plan to remediate security vulnerabilities. Auditors expect this format.

Suitable for: a defined system, or an audit deadline that needs a formal report.

Red team assessment

A red team assessment tests whether you detect an attack and how fast you respond. The team pursues a goal by any in-scope route while your blue team defends unaware, so you learn your real response capabilities while withstanding red team attacks. TechMagic offers this as red team as a service.

Suitable for: a security team with a SOC or alerting that has never been tested.

Physical penetration testing

Physical pen testing validates the physical security controls protecting your buildings and hardware. Testers attempt tailgating, badge cloning, lock bypass, and try to gain unauthorized access to server rooms, all agreed in advance. TechMagic does not run physical tests, so scope this with a specialist vendor.

Suitable for: offices and data centers where a badge and a confident walk get you in.

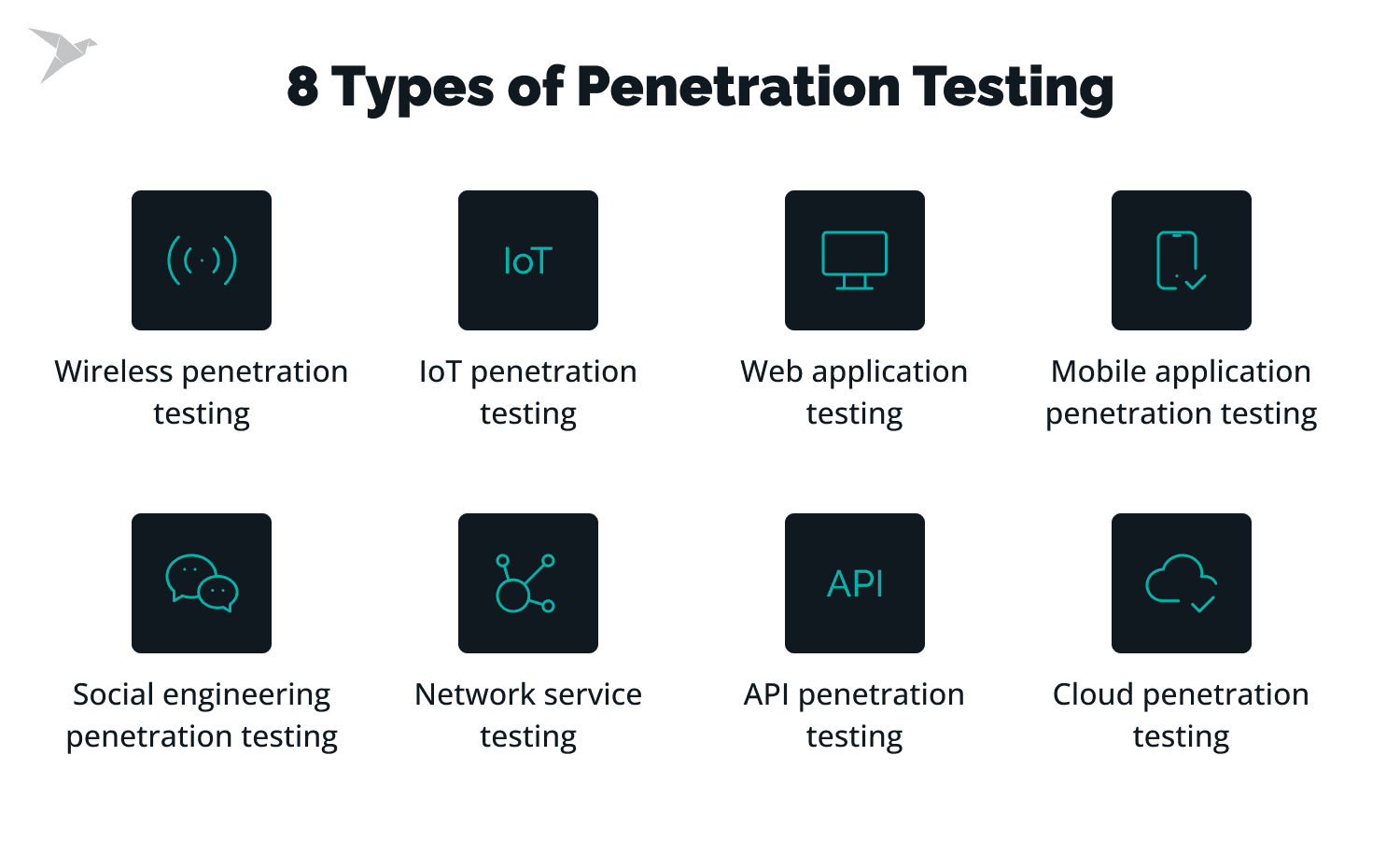

Eight Areas of Pen Testing

Target area is the axis most buyers shop by, because it names the thing they are trying to protect. Most teams first meet the types of penetration testing in cyber security audits, where nobody defines the labels. TechMagic scopes and delivers six of the eight below, and the last two are here for completeness.

Web application testing

Web application penetration testing evaluates an application reachable through web browsers against the OWASP Top 10, with the OWASP Web Security Testing Guide setting the method. Injection, cross site scripting attacks, and broken access control remain the highest-yield categories. Retail, SaaS, and FinTech products test here first, because the web application is usually the largest attack surface a company owns. See our web app pentest services for scope and timelines.

Mobile application testing

Mobile application penetration testing covers the app binary, its local storage, and the APIs behind it, following the OWASP Mobile Application Security Verification Standard on both Android and iOS builds. Testers identify vulnerabilities such as insecure local data storage, weak certificate pinning, and hardcoded secrets. HealthTech and banking apps carry the most risk, since a stolen phone is a realistic threat model. TechMagic delivers this through mobile app pentest services.

API testing

API penetration testing targets the interfaces your applications and partners call directly, checking authentication, authorization, mass assignment, rate limiting, and object-level access control for potential vulnerabilities. The toolkit is Burp Suite, OWASP ZAP, Postman, and your Swagger or OpenAPI definitions. Broken object-level authorization is the single most common serious finding, and APIs earned a dedicated OWASP Top 10 list of their own. Scope this as an API pentest when partners or mobile clients consume your endpoints.

Cloud testing

Cloud penetration testing examines the cloud infrastructure behind your AWS, Azure, or Google Cloud deployment and the identity model that governs it. Common targets are over-permissive IAM roles, public storage buckets, exposed managed databases, and misconfigured identity providers such as AWS Cognito or Microsoft Entra ID. Provider rules of engagement apply, so scope is agreed with the cloud vendor's testing policy in mind. Cloud-native companies retest whenever the architecture changes, and TechMagic runs cloud pentest engagements across all three major providers.

Network service testing

A network penetration test examines the network infrastructure carrying your traffic, on-premises or hosted. Testers review firewall rules, router and switch configuration, VPN gateways and split-tunneling rules, DNS, proxy setup, patch levels, and the encryption protecting internal traffic. Man-in-the-middle positioning and unpatched services are the usual entry points for common network based attacks. Manufacturing and logistics companies depend on this layer for network security, and you can book it as a network pen test.

AI system testing

AI penetration testing evaluates Large Language Models, agents, and the pipelines feeding them, probing to uncover security vulnerabilities such as prompt injection, training-data and system-prompt leakage, unsafe tool invocation, and excessive agency in autonomous workflows. The OWASP Top 10 for LLM Applications is the working reference. AI testing is the newest category on the list, and it grew as products started shipping agentic features. Our engineers hold the Certified AI/ML Pentester credential from The SecOps Group, and we scope this work as AI pentesting.

Wireless testing

Wireless penetration testing assesses wireless networks and the devices attached to them, looking for weak WPA2 or WPA3 configuration, rogue access points, guest networks that reach production, and bypassable captive portals. The test happens on site, because radio range defines the attack surface. TechMagic does not currently sell wireless testing as a standard engagement, so treat this section as background for scoping conversations.

IoT testing

IoT penetration testing covers connected devices and the systems they share a network with, including firmware extraction and analysis, hardware interface probing, default-credential checks, and review of the device's cloud backend for security holes. Like wireless, IoT testing is its own discipline with its own toolchain. It appears here because buyers compare it against the categories above, and it sits outside our standard service catalog.

All services

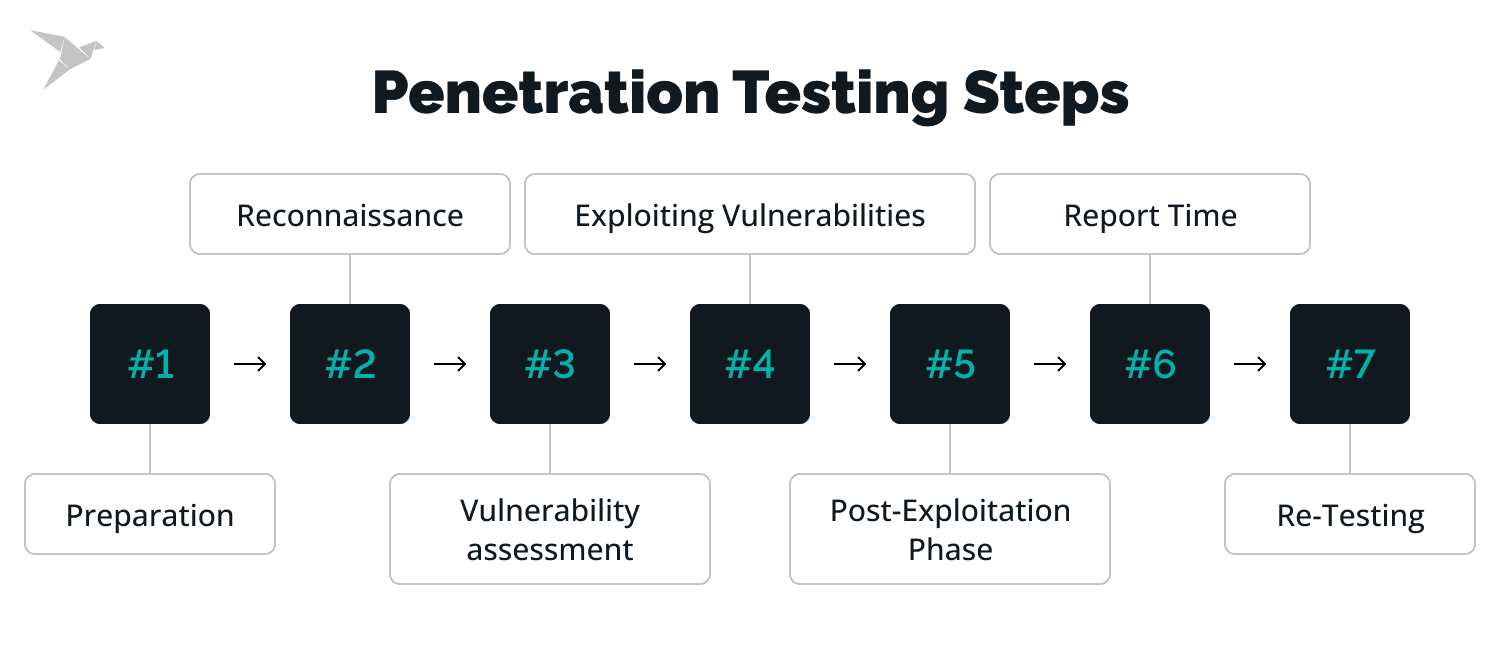

Penetration Testing Steps

How to Choose the Right Penetration Testing Type for Your Project

Choosing between the different types of penetration testing comes down to three questions: your deadline, your architecture, and your security maturity.

Match the type to your compliance deadline

PCI DSS v4.0.1

every 12 months and after major changes

SOC 2

not required; auditors accept one as evidence

ISO 27001:2022

at development and acceptance, then ongoing

HIPAA

periodic; annual testing proposed in 2025

Match the type to what you're protecting

One web app and its API

web and API testing

Offices, a warehouse, and laptops

add network and physical

Regulated data in a mobile app

the mobile binary and its endpoints

Sensitive data behind an API

the API and its access controls

Match the type to your security maturity

Never tested

gray box scoped test on your most valuable asset

Findings remediated

retest to confirm fixes

Patching consistently

broader coverage across target areas

Detection and alerting in place

red team assessment

Penetration Testing Types Statistics You Should Know

Each figure below comes from a primary industry report published in the last 12 months. They point at unpatched, reachable software: the weakness found by the types of penetration testing cybersecurity teams run most often, such as external, web application, API, and network tests.

31%

of breaches now begin with the exploitation of a software vulnerability, the first time that vector has outranked stolen credentials. Verizon Data Breach Investigations Report 2026

48%

of all breaches involve ransomware, based on incidents analyzed through October 2025. 2026 Verizon DBIR

$4.99 m

is the global average cost of a data breach, up 12% in a single year. IBM Cost of a Data Breach Report 2026

1 in 4

More than 1 in 4 malicious attacks are now AI-driven, a 56% year-over-year rise that adds about $1 million per breach. IBM

$211.69 b

is the projected worldwide cybersecurity spend for 2026, growing 7.72% year over year. Statista
