Automated UI Testing: Streamlined Solutions for Efficiency

Ihor Sasovets
Lead Security Engineer at TechMagic, experienced SDET engineer. Eager about security and web penetration testing.
Automated UI Testing: Streamlined Solutions for Efficiency

Did you know that poor user experience can lead to a staggering 88% of users abandoning an app? Manual testing alone simply cannot keep up with apps' increasing complexity and rapid release cycles. It's time to embrace automated UI testing to catch bugs early and streamline their testing efforts.

The statistics don't lie. According to a recent study, companies that invest in test automation achieve a 75% reduction in testing time, allowing them to allocate resources more efficiently and accelerate their release cycles. Moreover, 85% of organizations report increased software quality after implementing automated UI testing.

In this blog post, we aim to equip you with knowledge about UI test automation and the tools necessary to master the process. Get ready with UI automation testing solutions with TechMagic!

What is UI Automation Testing?

UI automation testing is a technique used to verify the functionality and behavior of a user interface (UI) in an application through automation tools. It involves using sophisticated automation tools to meticulously examine and validate the behavior, functionality, and performance of the UI components within an application.

According to the benefits of test automation, developers and testers can identify potential issues and inconsistencies, functioning correctly, user-friendly, and compatible with different browsers and operating systems.

Automated UI testing is typically implemented using specialized tools or frameworks that provide features to capture and replay user interactions, extract UI elements, perform assertions, and generate test reports. These tools allow developers and testers to create test scripts that define the expected behavior of the UI for specific scenarios or use cases.

The primary goal of UI automation testing is to expedite the validation of a software product's working state without compromising its quality.

By simulating user interactions and predefined scenarios through meticulously crafted test scripts, this technique detects deviations between the system's actual behavior under test and the expected behavior. In turn, these deviations serve as early indicators of potential defects or inconsistencies, empowering the development team to rectify issues promptly.

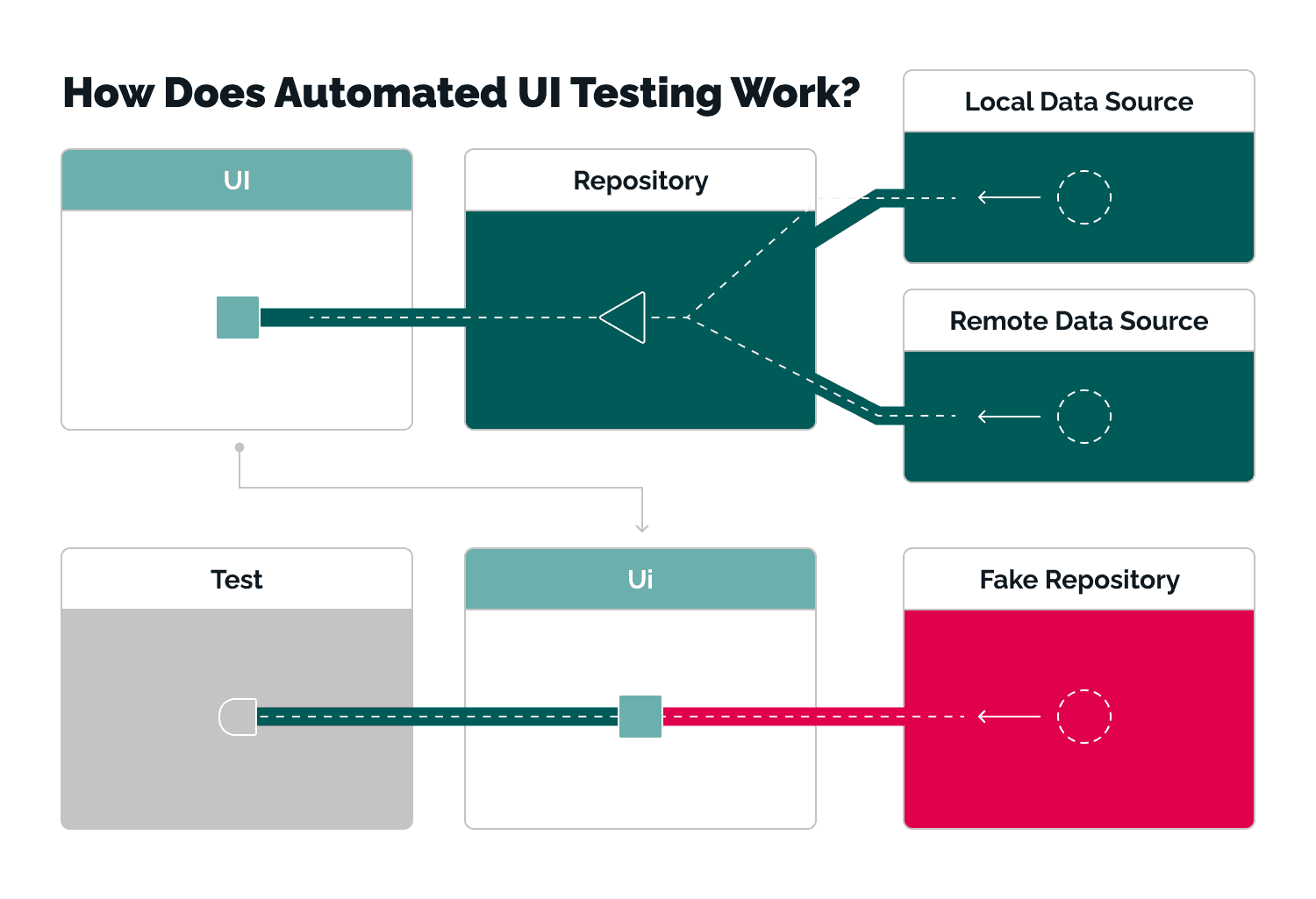

How does automated UI testing work?

To initiate the automated UI testing process, the first step is to select a suitable testing tool that aligns with the specific requirements of your application. Once the tool is in place, the next phase involves creating test scripts. A test script serves as a set of instructions for the automated testing tool, guiding it on the actions to perform and the expected outcomes during the test. Depending on the chosen tool, creating a test script can range from simply recording actions performed within the application to writing code in a programming language like TypeScript, Python or Java.

ui test automation framework

Once the test scripts are ready, they can be executed using the selected testing tool. The tool will emulate user interactions within the application, following the steps outlined in the test script. It replicates a human user's actions when manually testing the application. Throughout the test execution, the tool collects data and details on each test scenario, providing valuable insights for analysis after the test completes.

After the test run, the automated testing tool compares the expected outcomes defined in the test script with the actual results obtained during the test. The test is considered successful if the observed results align with the expectations. However, if discrepancies arise between the expected and actual outcomes, the testing tool generates alerts or notifications, highlighting potential issues requiring further investigation.

While creating test scripts, executing tests, and validating results may appear time-consuming, the long-term benefits of automated UI testing far outweigh the initial investment. Once the testing infrastructure is established, automated UI testing significantly reduces the manual effort involved in repetitive testing tasks.

When to Use Automated UI Testing

When to use Automated UI testing

Here are some scenarios that indicate when automated UI testing is the right choice:

  1. When you need to test the entire application flow from start to finish, including different user interactions and scenarios, automated UI testing can ensure comprehensive coverage and accuracy.
  2. When your application relies on multiple components or systems that need to work seamlessly together, automated UI testing can help ensure proper integration by simulating interactions between different modules.
  3. When making updates or modifications to an application, automated UI testing can effectively conduct regression testing. Retesting existing functionality, it ensures that new changes have not introduced any unintended issues or regressions.
  4. In an iterative development process where frequent changes and updates are made, automated UI testing enables efficient testing of each iteration. It allows for quick validation of the UI and facilitates the early detection of any issues or bugs.
  5. For applications that require ongoing maintenance and updates, automated UI testing proves valuable. It reduces the effort required to validate existing functionality after each update and provides confidence in the stability of the UI.
  6. Automated UI testing can accurately verify the expected behavior when dealing with intricate workflows involving multiple steps and interactions.
UI testing should be complemented by other forms of testing, as no single method can cover all aspects of software quality. Relying solely on UI testing may overlook critical issues that could be captured through other testing techniques, such as unit testing or API testing. A balanced approach to testing ensures comprehensive coverage and higher software quality.

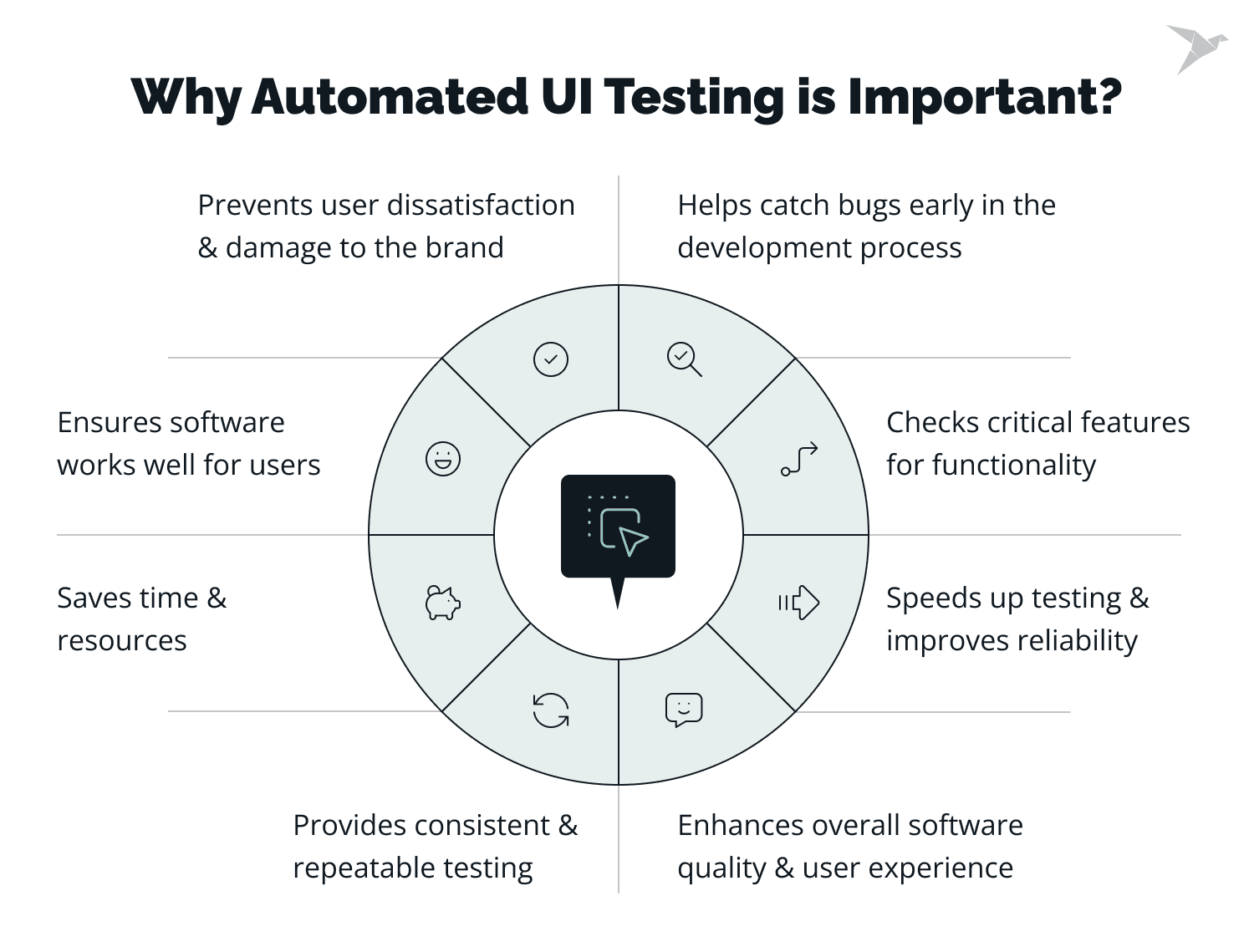

Why Automated UI Testing is Important?

Automated UI testing is essential for software development because it offers several significant benefits.

Benefits of Web UI Test Automation

Automated UI testing offers numerous benefits that help improve the efficiency, accuracy, and cost-effectiveness of the testing process. Here are some of the key benefits of implementing automated UI testing:

  • Increased Speed: Automation allows tests to be executed much faster than manual testing.
  • Cost Efficiency: Automated tests reduce the time and effort spent on QA during development, optimizing the budget allocation. Additionally, early detection of UI bugs allows for cheaper fixes, preventing potential revenue loss and customer dissatisfaction caused by poor product quality.
  • Improved Accuracy and Reliability: Automated UI testing reduces the chances of human error in manual testing. While poorly written automation scripts can still introduce errors, the overall reliability and accuracy of UI testing are greatly improved through automation.
  • Regression Testing: It helps perform effective regression testing by re-executing a predefined set of test cases to ensure the previously working features still function as expected.
  • Improved Test Coverage: It enables comprehensive test coverage by executing many test cases across different devices, browsers, and operating systems. It ensures the application is thoroughly tested under various scenarios, increasing confidence in the software's stability and reliability.
  • Early Bug Detection: Test automation enables teams to catch bugs before they reach production, reducing the risk of critical failures and minimizing the cost and effort required to fix them.

Reduce the risk of human error, and automate bug detection

Learn more

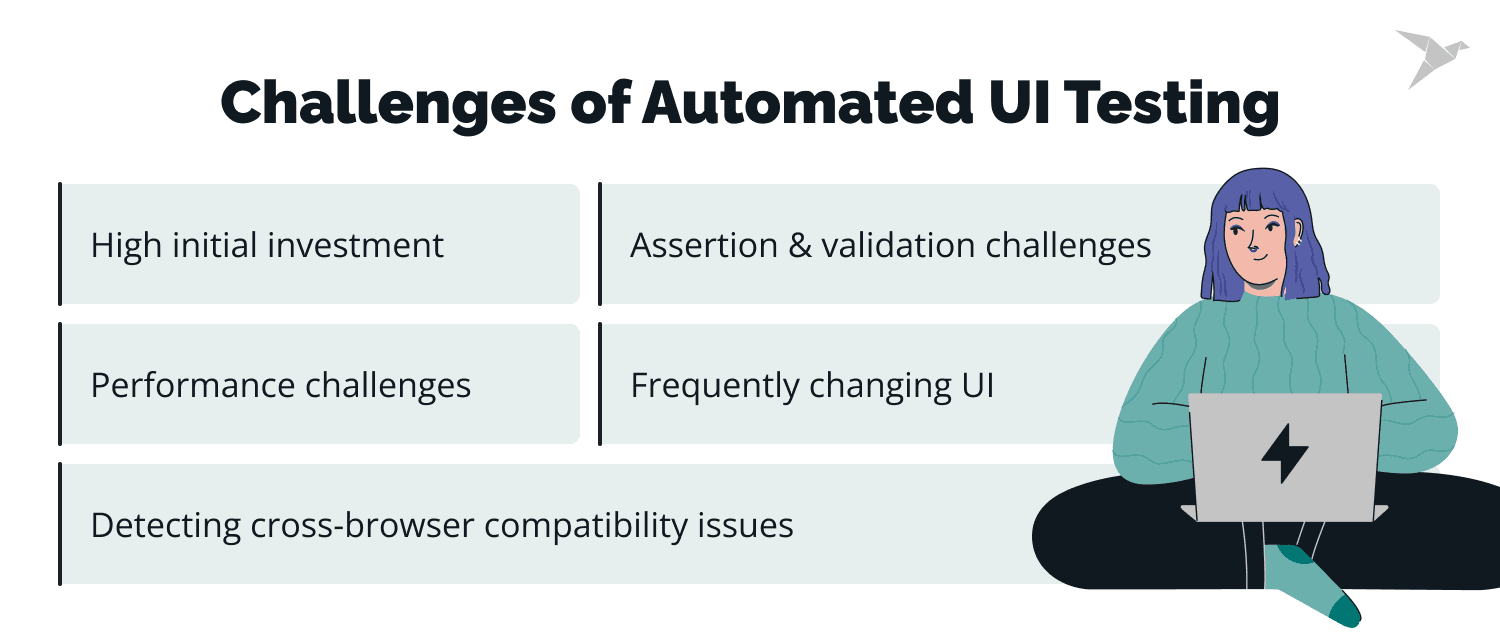

What Are the Challenges of Automated UI Testing?

Automated UI testing, while beneficial, comes with its own set of challenges. Here are some common challenges that teams may face when implementing automated UI testing:

  • Frequently changing UI: Tests need to be modified to accommodate new UI changes and ensure they continue to run correctly after each codebase update.
  • Detecting cross-browser compatibility issues: Each browser interprets HTML, CSS, and JS differently, leading to discrepancies in how the UI is displayed.
  • Assertion and validation challenges: Writing UI tests that accurately evaluate the expected results can be challenging. UI tests need to validate not only the presence of specific UI elements but also the absence of any unexpected behavior or anomalies.
  • High initial investment: While the long-term benefits of automation are considerable, the initial investment can be a challenge for organizations with limited resources.
  • Test script maintenance: As the UI evolves, test scripts need to be updated to reflect changes in the UI design.
  • Performance challenges: UI testing can be slow and resource-intensive, particularly for complex applications. Long execution times can lead to delays in software development and release cycles.

Now let's explore automated UI testing tools that are worth your attention.

Top 7 Automation UI Testing Tools

Selenium

Selenium is an open-source web automation project widely used for UI automation testing. It consists of several UI path test automation components, including Selenium WebDriver, Selenium IDE, and Selenium Grid, each serving a specific purpose in the automated testing process.

Specifics of Selenium:

  • Selenium WebDriver: This core component of Selenium serves as an interface for creating instruction sets that can be executed interchangeably on various browsers. It enables developers to write code that mimics human interactions, making it an effective tool for automating UI tests.
  • Selenium IDE is a browser extension that provides a user-friendly interface for recording and playing back tests. It simplifies the test creation process by capturing user actions and generating test scripts, making it ideal for beginners or those who prefer a visual approach.
  • Selenium Grid allows parallel test execution across multiple browsers, versions, and operating systems. It facilitates efficient test distribution and execution, enabling faster feedback and increased productivity.

Features:

  • Cross-browser and language compatibility
  • Open-source with community support
  • Powerful recording and Playback
  • Grid for parallel test execution

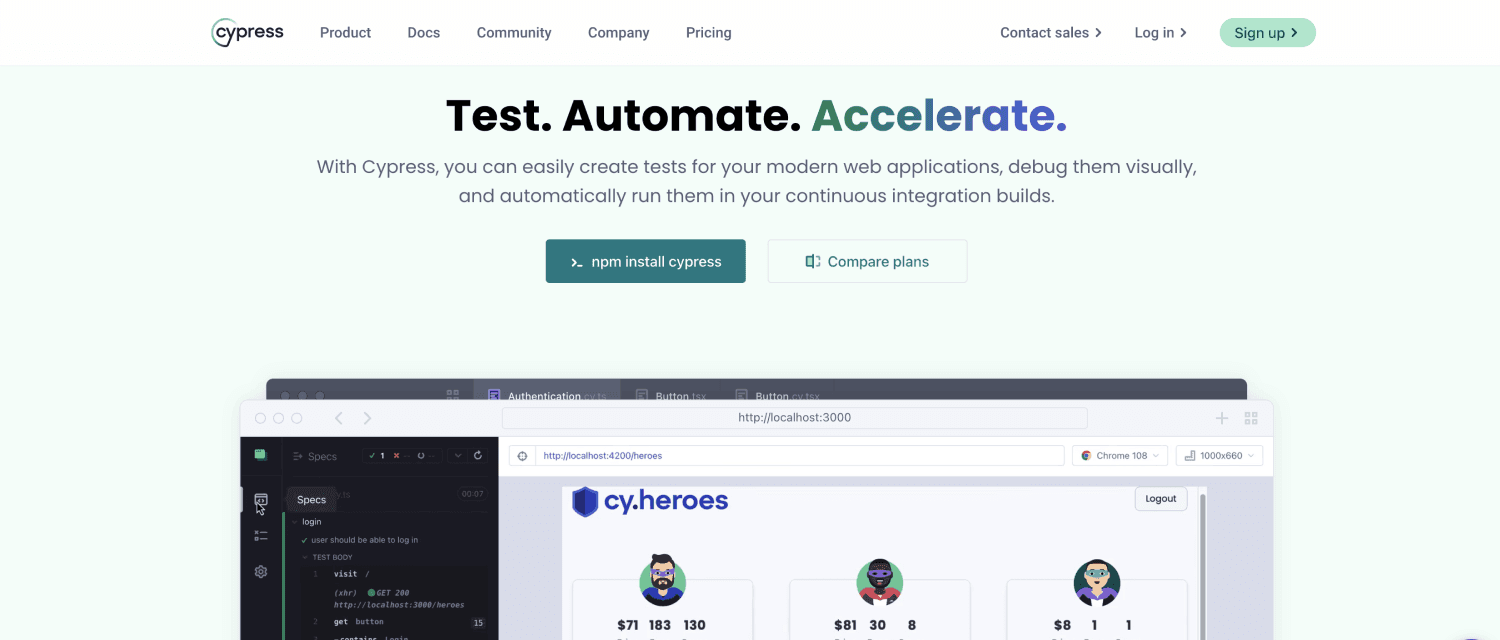

Cypress

Cypress is a JavaScript-based UI testing tool designed for modern web applications. It offers a user-friendly interface, seamless integration with other testing tools, and a code-centric approach to test automation. With its focus on fast and reliable testing, Cypress aims to address the pain points often encountered during web application testing.

As for web UI test automation, it eliminates the need for additional downloads or configurations, making it simple to set up and start testing. The tool provides readable errors and stack traces, which aids in quick debugging. Cypress runs tests fast by utilizing the same run-loop as the application, and it allows control and stubbing of network traffic for testing edge cases. Additionally, Cypress Cloud offers video-recorded test results for enhanced collaboration and analysis.

Features:

  • Real-time reloading and automatic waiting
  • Easy integration with other testing tools and frameworks
  • Time-travel debugging and snapshot capabilities

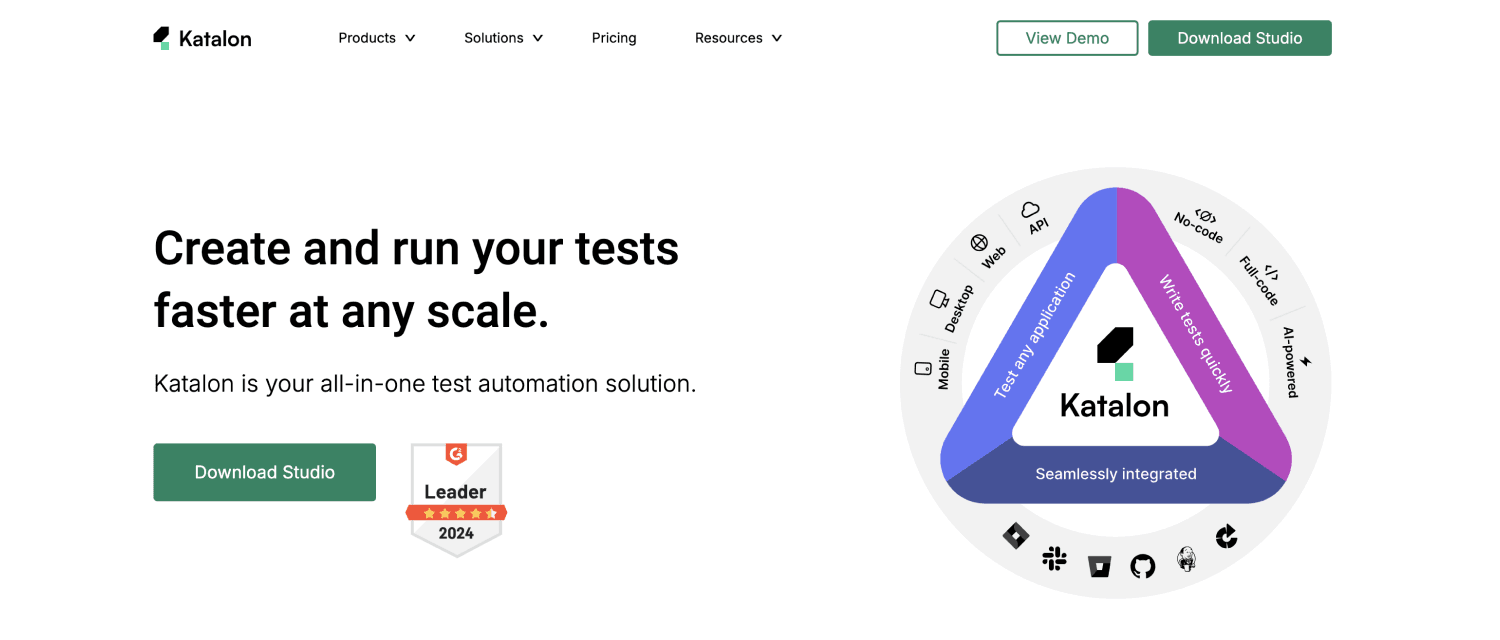

Katalon Studio

Katalon Studio is a powerful software testing platform that enables teams of any size to effortlessly plan, author, and execute functional and UI automated tests. It is built on top of the popular open-source automation frameworks Selenium and Appium, allowing users to leverage their extensive testing capabilities.

The tool stands out from other UI testing tools due to its combination of powerful features and user-friendly interface. It adopts a keyword-driven approach, enabling users to create test cases using intuitive keywords and actions. Additionally, Katalon Studio's AI-powered functionalities, such as AI Visual Testing, provide advanced capabilities to identify even the slightest UI changes and ensure comprehensive test coverage.

Features:

  • Fully inherit Selenium capabilities
  • Built-in project templates
  • AI-powered functionalities
  • CI/CD readiness

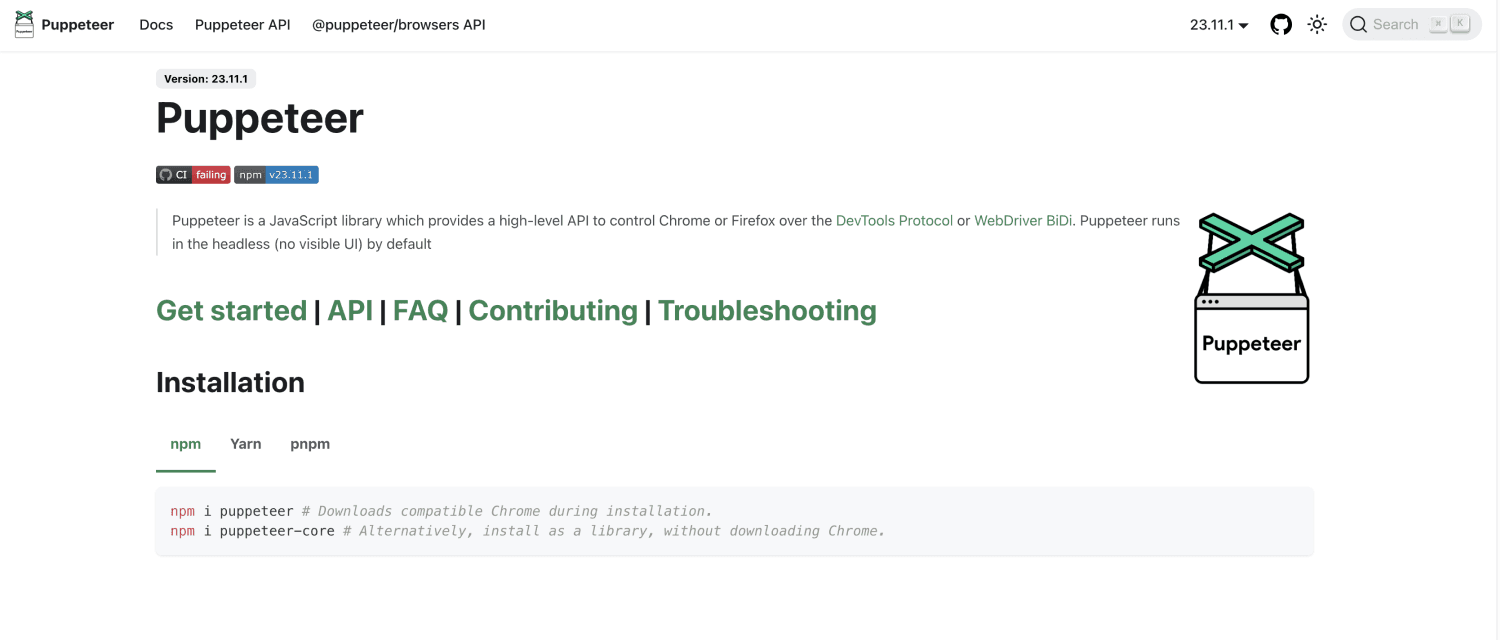

Puppeteer

Puppeteer is an open-source Node.js library maintained by Google. It is primarily designed for browser automation and UI testing. Unlike most testing tools built for different browsers, it is specifically developed to provide a high-level API to control Chrome or Chromium browsers over the Chrome DevTools Protocol.

The primary focus on Chrome and Chromium browsers allows it to provide richer functionality and higher reliability specifically for these browsers. It runs tests in a headless mode without a graphical user interface sets it apart from many other UI testing tools. It is well-suited for automated testing in CI environments or scenarios where the browser's visual output is not required.

Features:

  • Headless browser testing
  • Extensive API
  • Integration with testing frameworks
  • Cross-browser support

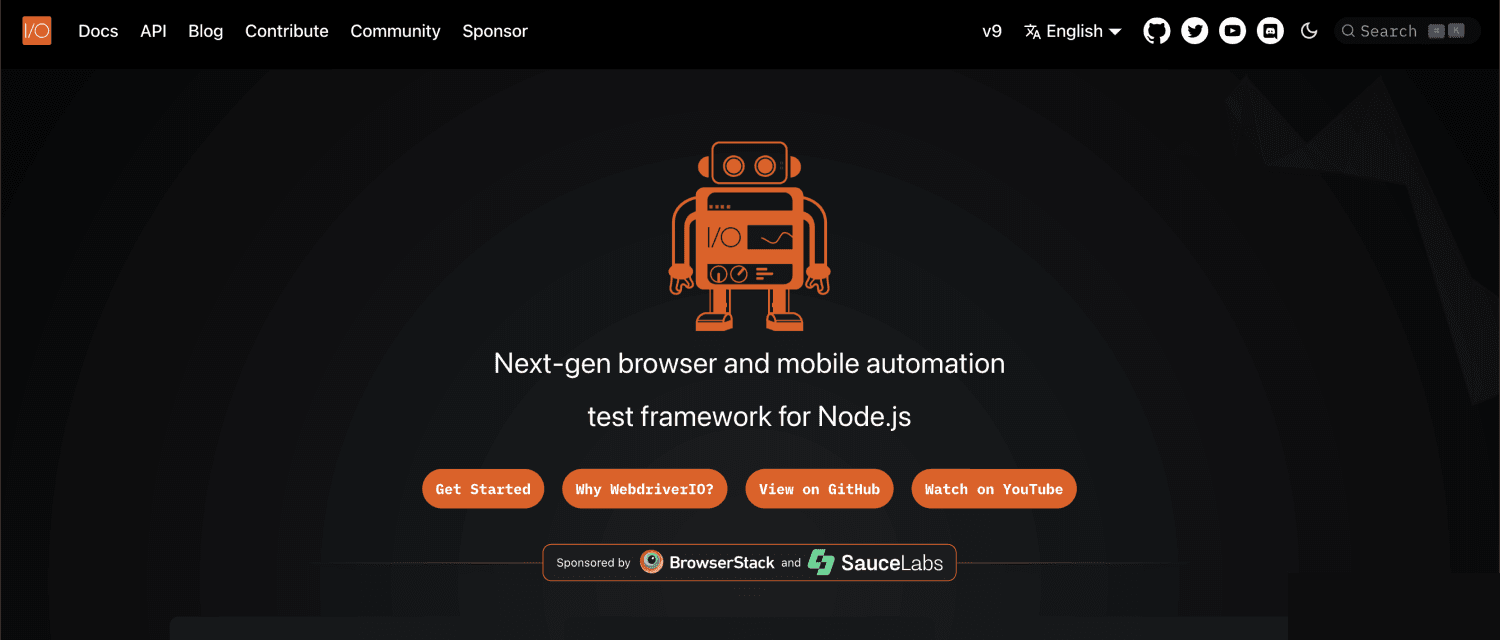

WebdriverIO

WebdriverIO is an open-source automation test framework that simplifies app interaction and offers plugins for creating scalable and stable automated tests. It is particularly useful for cross-browser testing and integrates with popular tools like Chrome DevTools and Puppeteer. With its versatile capabilities and integration options, WebdriverIO is a valuable addition to any UI automation testing toolkit.

One of the unique aspects of WebdriverIO is its extensive plugin architecture and protocol support. The framework provides a wide range of plugins that can be easily integrated into testing. This allows users to customize and extend WebdriverIO's capabilities and integrate with other tools and frameworks, such as Chrome DevTools and Puppeteer. This sets it apart as a powerful and versatile UI automation testing solution.

Features:

  • Extensible Plugin Architecture
  • Multiple Programming Language Support
  • Multiple Browsers Support

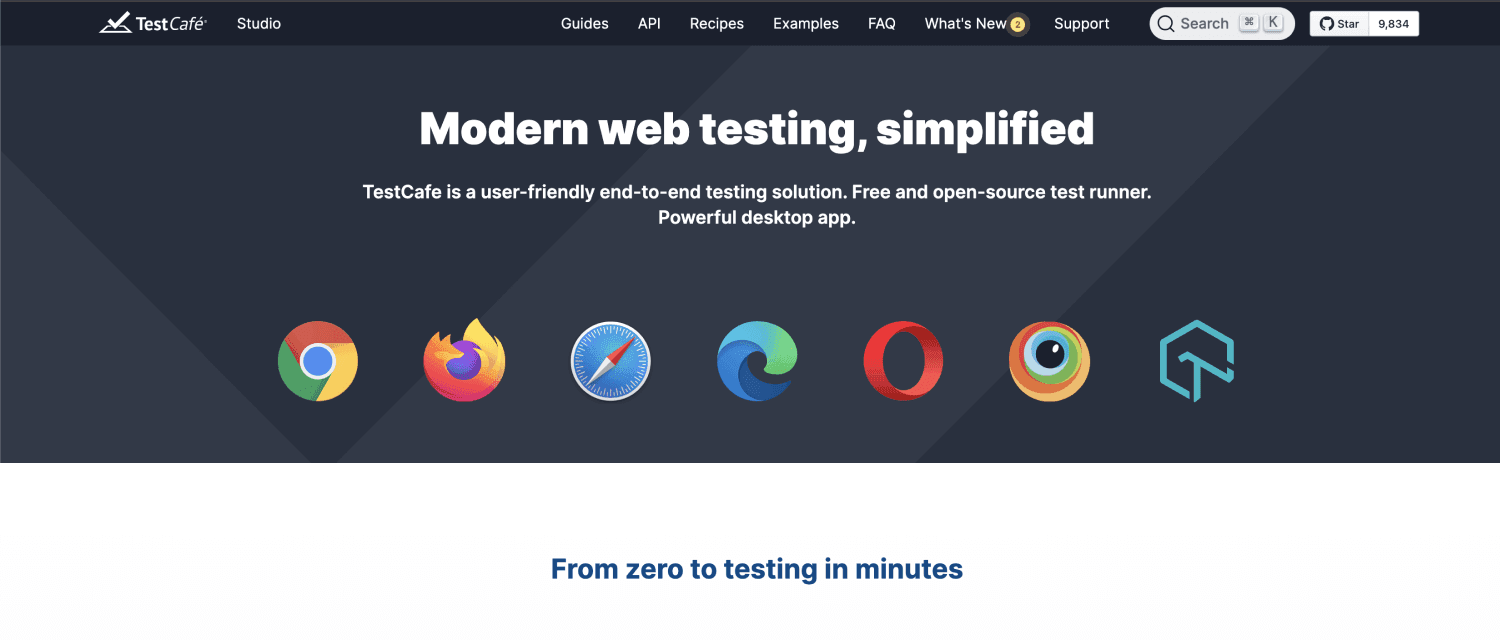

TestCafe

TestCafe is a powerful open-source UI automation testing tool specifically designed for web applications. It offers cross-platform compatibility, allowing tests to run on Windows, macOS, and Linux operating systems. With its unique approach of running tests directly in the browser, it eliminates the need for browser plugins or additional software installations.

TestCafe executes tests directly in the browser without any plugins or external dependencies. This approach simplifies the setup process and ensures a seamless testing experience across browsers and operating systems. The automatic waiting mechanism also enhances test reliability by eliminating the need for manual timeouts or explicit waits.

Features:

  • No browser plugins or WebDriver installations required
  • Cross-platform compatibility
  • Simple, intuitive interface
  • Parallel test execution and concurrency support
  • Built-in automatic waiting mechanism

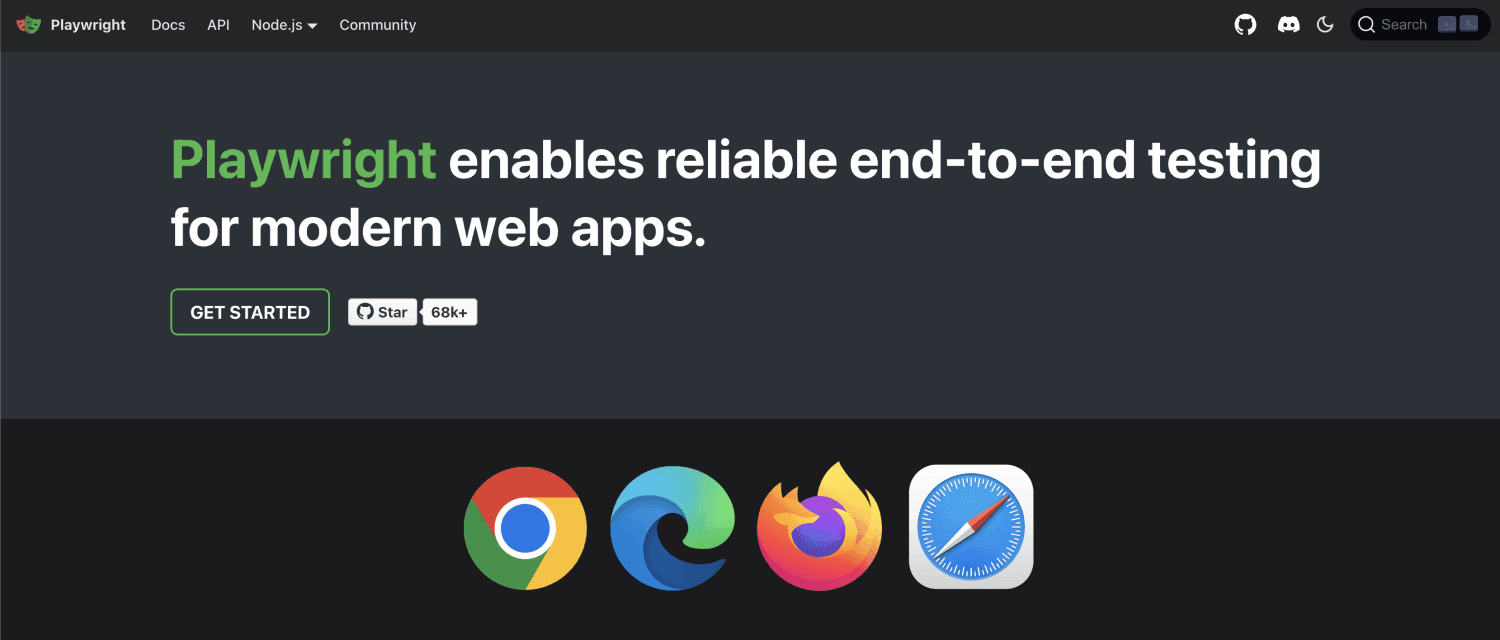

Playwright

Playwright is an advanced open-source automation library specifically designed for testing web applications. Developed by Microsoft, it offers comprehensive cross-browser support, including Chrome, Firefox, and WebKit, making it a highly versatile tool for UI testing across different platforms.

One of Playwright's standout features is its unified API, which allows one to write tests in a single codebase, simplifying test maintenance and enabling efficient cross-browser testing. Specialists can perform various actions, such as interacting with web elements, handling file downloads, and executing tests in both headless and non-headless modes.

Features:

  • Cross-browser support (Chrome, Firefox, WebKit)
  • Headless and non-headless modes
  • Test debugging
  • Parallel test execution

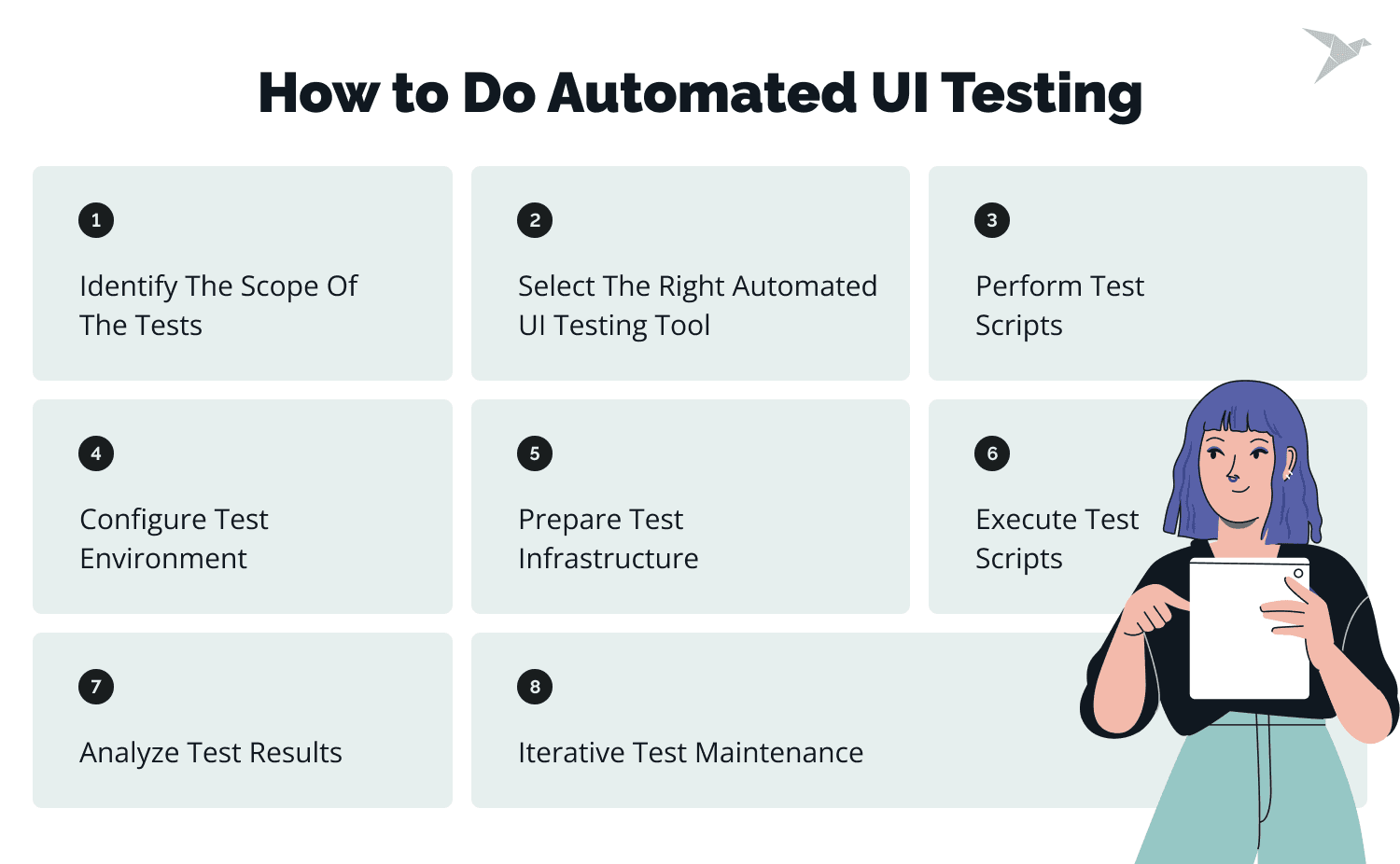

How to Do Automated UI Testing

How to do automated UI testing

Step 1. Identify the Scope of the Tests

Start by determining the scope of your UI testing efforts. This involves understanding the application's functionalities; user flows, and critical areas that need to be tested. Identify the specific features and scenarios that require automated UI testing.

Step 2. Select the Right Automated UI Testing Tool

The second step in automated UI testing is choosing automated ui testing tools that align with your project requirements. Several options are available, ranging from record-and-playback tools to more advanced frameworks that require coding skills. Consider factors such as ease of use, compatibility, reporting capabilities, and support for your target platforms and technologies.

Step 3. Perform Test Scripts

Once you have selected an automated UI testing tool, you can begin creating test scripts. Test scripts define each test scenario's sequence of actions and expected outcomes. Depending on the tool, you can record your interactions with the application or write code manually using a programming language. The test scripts should cover various UI functionalities and user scenarios to ensure comprehensive test coverage.

Step 4. Configure Test Environment

Before executing the test scripts, setting up a proper test environment is crucial. This includes preparing the application under test, ensuring the test environment matches the production environment, and configuring any necessary test data or dependencies.

Step 5. Prepare Test Infrastructure

Once your test environment and test scripts are done, you should work on creating a dedicated test infrastructure that will be used to run your test suites regularly and ensure that they are integrated into your existing CI/CD processes to verify the quality of the newly added and existing features.

Step 6. Execute Test Scripts

With the test scripts in place and the test environment configured, you can initiate the execution of the automated UI tests. The testing tool will simulate user interactions based on the defined test scripts, such as clicking buttons, entering data, navigating through screens, and verifying the expected responses. The tool interacts with the application's UI elements, capturing and evaluating the outcomes at each step.

Step 7. Analyze Test Results

After the execution of the automated UI tests, the testing tool generates detailed test reports and logs. These reports provide insights into the test coverage, executed steps, and identified issues or discrepancies. By analyzing the test results, you can identify failed tests, pinpoint the root causes, and prioritize issues for further investigation and resolution.

In cases where test failures or unexpected outcomes are encountered, the next step involves debugging and troubleshooting the identified issues. The testing tool may provide logs, screenshots, or error messages to diagnose the problem.

Step 8. Iterative Test Maintenance

As the application evolves and new features are added, test scripts must be revised and enhanced to accommodate these changes. Test maintenance ensures that the automated tests remain accurate and aligned with the current state of the application.

How we built

an E-commerce analytics app using JS and Serverless on AWS

Learn more

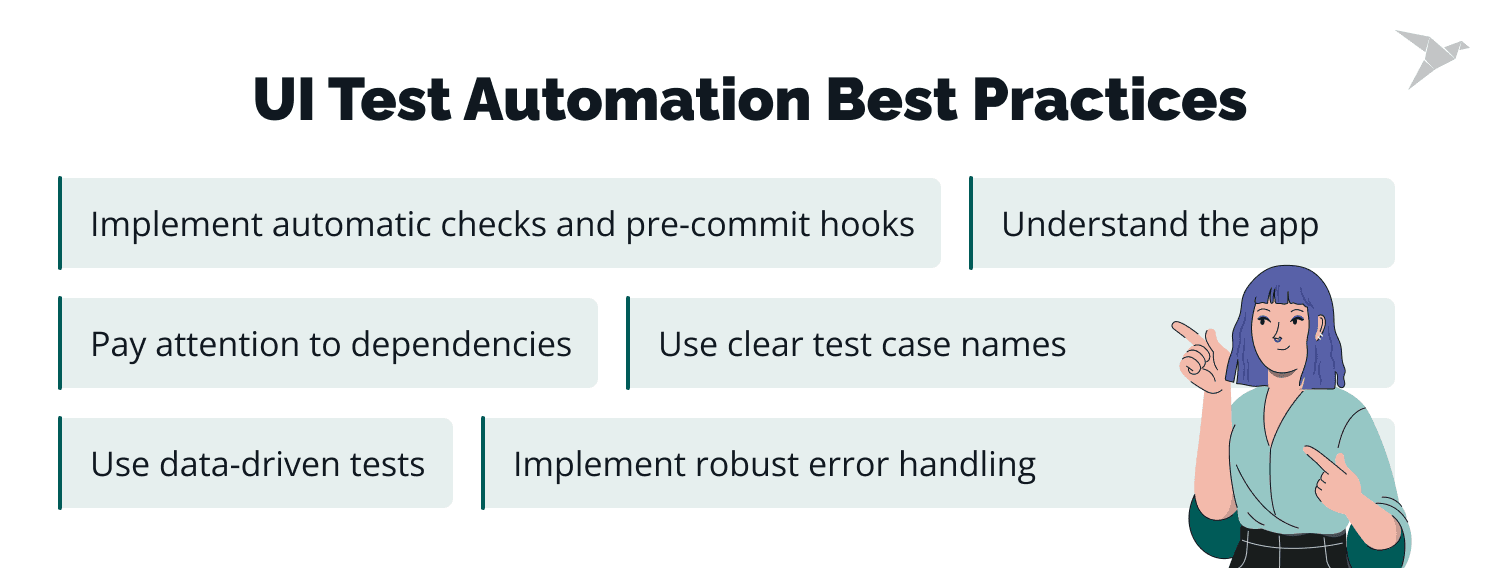

UI Test Automation Best Practices

  • Before testing, first understand the app. This practice ensures the chosen tools align with the technology, resulting in more effective and accurate UI testing.
  • Dependencies between tests can lead to complications, especially when running tests in parallel or modifying the test suite.
  • Clear test case names enhance communication among team members and improve overall test suite management.
  • Implementing robust error handling allows tests to handle unexpected situations and gracefully capture relevant information for debugging.
  • Use data-driven instead of repeated tests to improve test coverage while minimizing the effort required to maintain and update the test suite.
  • Implement automatic checks and pre-commit hooks to minimize the number of coding issues during development.

A little bonus:

In a Nutshell

Modern software applications are complex, making manual testing laborious and time-consuming. Automated UI testing offers a solution by automating the validation of application functionality. Whether a web application or a mobile app, various tools are available to support automated UI testing.

Getting started with automated UI testing involves selecting a suitable testing tool, creating test scripts, and validating expected results. Although there are initial costs involved, the long-term benefits make it worthwhile. Consistency, speed, and efficiency in testing are achieved, resulting in significant cost savings, optimal resource utilization, and a high-quality product that keeps customers satisfied.

Remember, implementing automated UI testing properly is an investment that pays off in the long run. It allows you to identify and address issues early on, deliver a reliable and bug-free product, and, ultimately, exceed your users' expectations.

If you need assistance or guidance with implementing automated UI testing, TechMagic is here to help. With our software development and quality assurance expertise gained through providing test automation services, you can overcome any challenges you may face while implementing automated UI testing.

Don't hesitate to reach out to TechMagic to take advantage of automated UI testing.

Interested to learn more about TechMagic?

Contact us

FAQ

  1. What is UI test automation?

    UI test automation refers to automating testing of a software application's user interface (UI). It involves using specialized tools and frameworks to simulate user interactions, validate UI elements, and verify the application's expected behavior.

  2. How to use functional programming in UI test automation?

    Functional programming emphasizes the use of pure functions and immutability, which can lead to more predictable code. In UI test automation, functional programming can be applied by designing test cases as a series of independent functions that take inputs, perform actions on the UI, and assert the expected outcomes.

  3. How does UI test automation work?

    UI test automation typically involves the following steps: setting up the testing environment, creating test scripts, preparing infrastructure for running test scripts, executing the test scripts and reporting and analyzing results.
